You can change single-phase power to three-phase power with a vfd drive. If you want to use a three-phase motor in a far place or where there is no grid, this way gives you steady power and saves energy. Canroon has trusted drive choices. You hook up single-phase power to the vfd drive, and it gives three-phase power for your machines. Always check what power you need and what your motor needs for safe and good use.

• You can run three-phase motors with single-phase power.

• Canroon vfd drive choices help you use energy well.

Key Takeaways

• You can use a VFD drive to change single-phase power into three-phase power. This lets you run three-phase motors when you only have single-phase power.

• Picking the right size VFD is very important. It should be at least two times the motor's full load current. This keeps things safe and stops overheating.

• VFD drives help motors start smoothly. This lowers stress on parts and makes the motor last longer.

• You need to do regular maintenance and safety checks. This keeps your VFD and motor working well and safely.

• Canroon has good VFD choices that help you save energy and make motors work better.

Using a VFD Drive for Single-Phase Power Conversion

Can a VFD Convert Single-Phase to Three-Phase Power?

A vfd drive can change single-phase power into three-phase power. This lets you use three-phase motors when you only have single-phase power. The vfd takes in single-phase power and gives out three-phase power for your motor. Your equipment gets steady power.

• A variable frequency drive can run a three-phase motor with single-phase input.

• Single-phase input vfd drives are built to take single-phase power and make three-phase power.

• For bigger motors, you can use a standard vfd. You connect two hot wires from the single-phase input and leave one spot empty. You need to pick a bigger vfd to handle more current.

Tip: Always check the size of your vfd drive. Picking a bigger vfd is important for large motors. This keeps your system safe and working well.

There are some limits when you use a vfd for phase conversion:

• Most vfd drives only work with small motors, up to 3 horsepower.

• If you switch your power system to three-phase, your vfd might not work anymore.

• Picking a bigger vfd costs more money and takes up more space.

• Some brands may not cover the warranty if you use the vfd for phase conversion like this.

Canroon has vfd drives that can do phase conversion. You can trust Canroon for good solutions and expert help.

Benefits of VFD Drives for Motor Startup

You get many good things when you use a vfd drive to start a motor. Variable frequency drives help your motor start slowly and smoothly. The vfd raises voltage and frequency step by step. Your motor speeds up from zero to full speed without sudden jumps. This lowers stress on parts like bearings and shafts.

Old ways give full voltage right away. This makes high currents and sudden force. Your motor wears out faster. With a vfd, you get smooth speeding up and slowing down. Your equipment does not get shocked when starting or stopping. You protect your motor and make it last longer.

You can use vfd drives for phase conversion in many places:

• Pump motors need three-phase power, even if you only have single-phase power.

• Factories in country or home areas often do not have three-phase power. Vfd drives let you run big machines with single-phase power.

• You save energy and control your motor better.

Note: Using a vfd drive for phase conversion helps you save energy and keeps your motor running well. You can use three-phase motors in places with only single-phase power.

Canroon vfd drives give you steady three-phase power and help you get good phase conversion. You get expert help and quality products for your energy needs.

Understanding Single-Phase and Three-Phase Power

Key Differences Explained

You should learn how single-phase and three-phase systems work before you try phase conversion. These two types of power are not the same. Check the table below to see how they are different:

Single-phase systems use just one AC wave. Three-phase systems use three waves that work together. Three-phase gives you more power and better efficiency. You also lose less energy when sending power with three-phase.

Single-phase needs two wires. Three-phase needs four wires. If a wire breaks in single-phase, you lose all power. In three-phase, your machines can still work if one wire stops.

Why Three-Phase Motors Need Three-Phase Power

Three-phase motors are used when you want them to work well and run smoothly. These motors need three-phase power to work their best. This power makes a spinning magnetic field inside the motor. The field helps the motor turn smoothly and gives strong, steady force.

Three-phase motors save more energy than single-phase motors. You spend less money over time. The balanced power in three-phase motors means less wasted energy. Your motor will last longer because it does not get too hot.

If you try to use a three-phase motor with single-phase power and no phase conversion, it will not start. It might use too much current and get too hot. This can break the windings and ruin the motor. You need phase conversion to keep your motor safe and working right.

Tip: Always use phase conversion with a VFD drive if you want to run a three-phase motor on single-phase power. This keeps your machines safe and working well.

Selecting the Right VFD for Single-Phase Input

Types of VFDs for Single-Phase Power

You have to pick the right vfd drive for phase conversion. Some vfd models work with single-phase input and give three-phase power. These drives let you run a three-phase motor from single-phase power. The table below lists some common vfd types for single-phase input:

You can use a standard vfd for phase conversion too. You connect two hot wires from your single-phase power and leave one spot empty. You need a bigger drive to handle more current. Canroon has vfd drives that work with single-phase input and give steady phase conversion.

Sizing and Selection Tips

You must pick the right size vfd drive for single-phase input. Single-phase input needs more current than three-phase input. Check your motor’s full load current and pick a vfd with at least double that rating. Here are some tips for picking the right vfd:

• The inverter should have at least 2x the motor’s full load current.

• Single-phase input current is about double the current for three-phase input.

• Derating is needed because most vfd ratings are for three-phase input.

• Make the input rectifier stage bigger to handle more current.

• Add more DC bus capacitance to control current ripple.

• Use a 5% choke or line reactor at the input to lower inrush current and protect the vfd.

• The DC bus capacitance should be about double the rated output current of the drive.

Tip: Always check the power range and voltage limits of your vfd drive. Make sure your drive matches your single-phase power and your motor’s needs.

You can make your motor work better by 20-50% with a vfd. You get smoother motor control and less stress on parts. You save energy and waste less. Advanced torque control helps your motor run smoother.

Important Features and Specifications

You need to look at important features and specifications when you pick a vfd for single-phase input. The table below shows what you should check:

You should also check if the vfd lowers inrush current. Vfd drives lower inrush current and protect your equipment. Soft starters only change voltage, but vfd drives change both frequency and voltage. This gives you better motor control and more energy savings.

Canroon vfd models like CV900N work well with single-phase input. You can see the technical specifications below:

You can use Canroon vfd drives for phase conversion in many places. You get steady single-phase input and strong three-phase power for your motor. You can trust Canroon for good help and quality products.

Note: Always check the specifications and features before you buy a vfd drive. Make sure your drive matches your single-phase power and your three-phase motor. You protect your equipment and get the best motor control.

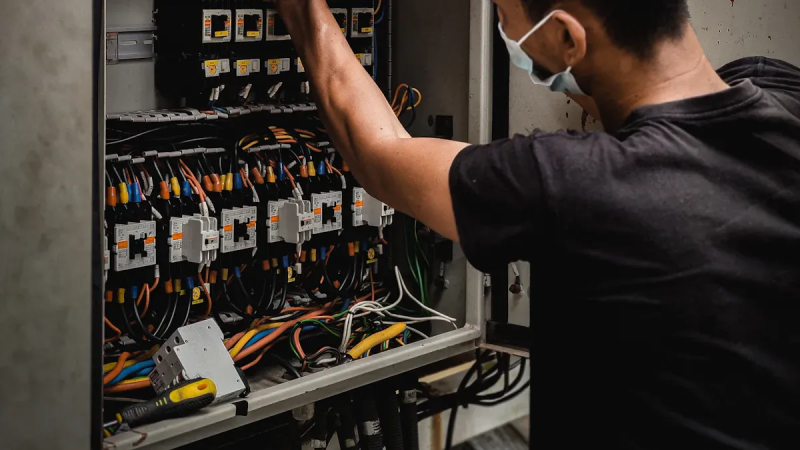

Installing and Configuring Your VFD

Equipment Needed

Before you begin, gather all your tools and materials. You need a VFD and a three-phase motor. Bring wiring tools and a multimeter. Wear personal protective equipment for safety. You also need mounting hardware and the user manual. Make sure you have the right cables for both single-phase and three-phase connections.

Installation Steps

Follow these steps to install your VFD for power conversion:

1. Check what your motor needs and make sure it uses three-phase power.

2. Turn off the VFD and take off any covers.

3. Make sure the VFD matches the voltage and current for three-phase use.

4. Change the wires to fit the three-phase setup.

5. Use the VFD screen to set the highest frequency and voltage for your motor.

6. Test the system to see if all wires are tight and the motor runs well.

Tip: Always check your wiring before you turn on the power. This helps stop damage to your motor and drive.

Configuration Tips

You can help your VFD work its best by doing these things:

• Use a multimeter to check the input voltage and watch for changes.

• Look at all circuit connections often. Tighten any loose wires and check for damage.

• Run vibration checks to find problems early.

• Make sure you ground the system well to stop failures.

• Do regular maintenance to help your VFD and motor last longer.

Safety Considerations

You must always think about safety when you install or use your VFD:

• Follow lockout/tagout steps every time you work on the system.

• Wear the right safety gear, like gloves and glasses.

• Make sure the power is off before you touch any wires.

• Use arc flash protection when you work near live circuits.

• Follow all electrical safety rules and best practices.

Note: Good safety habits keep you and your equipment safe. Never skip these steps, even for small jobs.

Troubleshooting and Common Issues with VFDs

Sizing and Compatibility Problems

You might have problems with size and matching when you use single-phase power with a vfd. Many people only connect two out of three input spots. This can make the current uneven and hurt the vfd if it is not the right size.

If you use single-phase power and only connect two input spots on a standard VFD, the current does not spread out evenly. This can make the VFD’s input parts get too hot and break if the VFD is too small. To stop this, you should pick a VFD that is much bigger than your motor needs. It is best to choose one that can handle twice the motor’s Full Load Amps. You also need to make sure the VFD’s input and output voltages are the same as your motor’s. This helps you avoid problems and keeps things working well.

Always check the input and output voltages. Make sure they fit your motor. Picking a bigger vfd helps stop problems and keeps your system safe.

Motor Performance Concerns

If your vfd is not the right size, your motor can have problems. You might see these things happen:

• The motor might not be protected well.

• The motor may not get enough torque.

• The motor can lose a lot of efficiency.

• The motor might not last as long.

You should always pick the right size vfd. This keeps your motor safe and working well.

You might see other problems when you change single-phase to three-phase power. The table below shows some common problems and good things:

Error Codes and Solutions

You might see error codes on your vfd screen. Some common ones are overcurrent, overvoltage, and undervoltage. If you see overcurrent, check your wires and make sure your vfd is big enough. Overvoltage or undervoltage means your power is not steady. Check your single-phase power and all connections. After you fix the problem, reset the vfd.

Tip: Always look at your vfd manual for error codes and what to do. This helps you fix things fast.

When to Contact Canroon Support

Call Canroon support if you keep seeing errors or your motor will not start. If you checked your wires, vfd size, and settings but still have trouble, you should get help. Canroon support can help you find the problem and tell you which vfd is best for your setup.

You can change single-phase power to three-phase with a vfd if you follow easy steps. Pick the right vfd for your motor. Make sure you put it in a safe place. Connect your motor wires the way the guide says. Check the cooling system and wires often so your motor works well. Canroon has small vfd drives that protect your motor and let you control speed exactly. The table below shows how Canroon’s features help your motor work better:

Always pick the right size and follow safety rules. Get a trained electrician to set it up.

FAQ

Can you use a VFD to run a three-phase motor with single-phase power?

Yes, you can use a vfd to convert single-phase power to three-phase. This lets you run three-phase motors in places where only single-phase power is available.

What size VFD should you choose for single-phase input?

You should pick a vfd that is at least twice the motor’s full load current. This helps your motor run safely and prevents overheating.

Do you need special wiring for phase conversion?

You must connect two hot wires from your single-phase supply to the vfd input. Leave one input terminal empty. Always check the wiring diagram in the manual.

What are common problems when converting single-phase to three-phase?

Who can help if you have trouble with your VFD?

You can contact Canroon support for expert help. They answer questions and guide you through setup and troubleshooting.
